TRUMPF L3030 3 kw laser year 1999
LOW PRICE DELIVER TIME NOW ..lokation Denmark
| Manufacturer | TRUMPF |

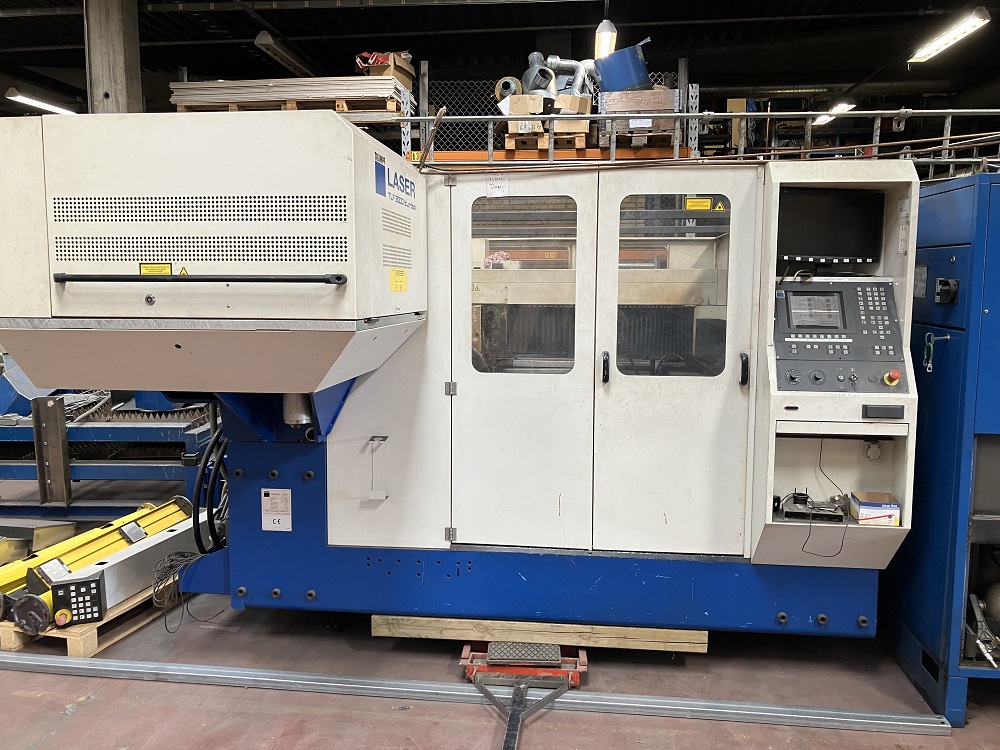

| Machine type | TRUMATIC L3030 |

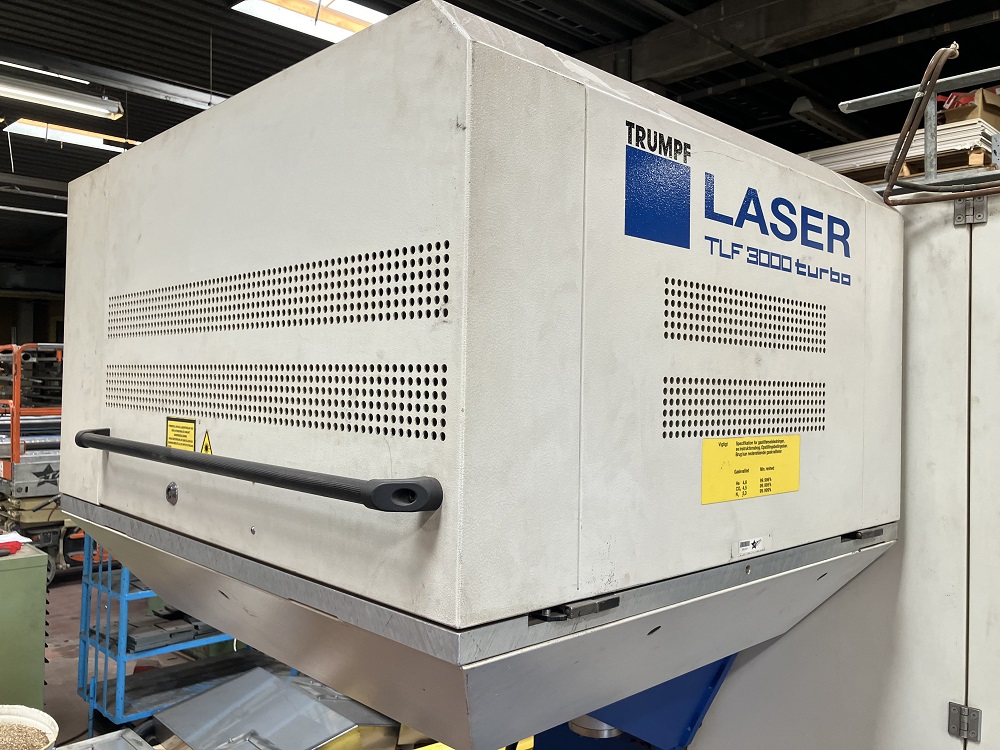

| Laser / type | Co2 laser 3000 watt LSM tubine |
| Year | 1999 |
| Machine Hour | Machine apr |
| Machine condicion | Machine is in good condicion |

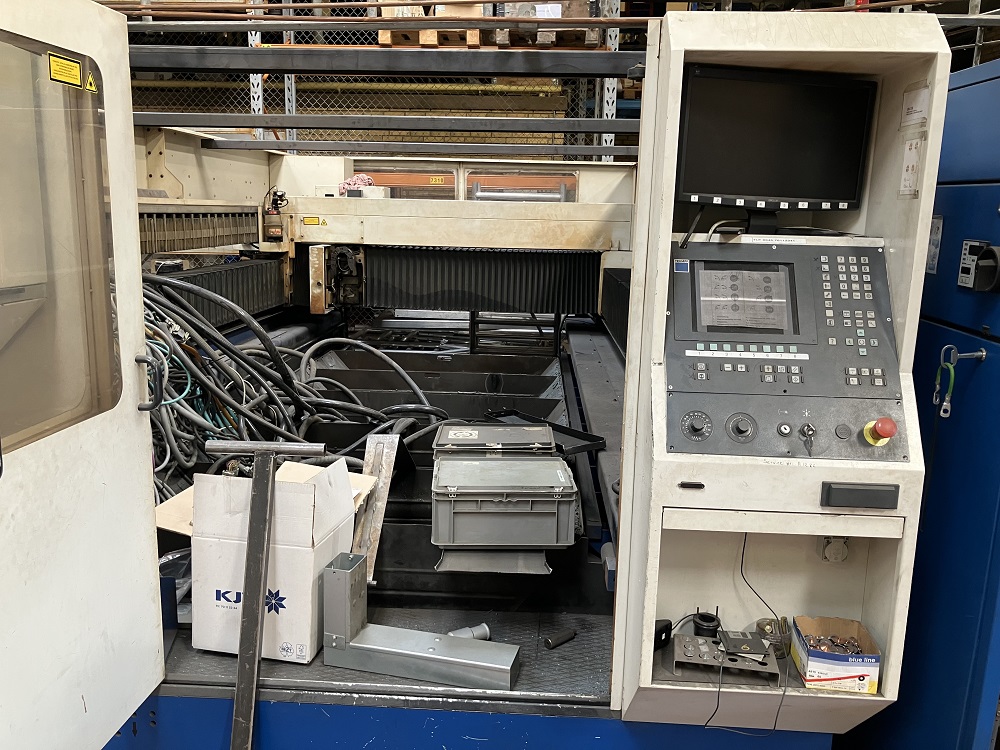

| cnc | Siemens 840 controld |
| Interface cnc | Normal lan rj45 or disc |
| Power neded | 400 volt fuse 3x 160 amp 50hz |
| air | Clean compressed air no water – no oil – no dust min 6 bar |
| Cutting gas | N2 for stanles hi pressure min 30bar O2 for steel cuting min 10 bar |
| Gas for laser | Co2 – N2- HE max 6 bar |
| Worksice | 3000x1500mm |
| Space neded in factury | 14000x7000mm |
| Cutting head | 5” + 7,5” |
| Machine precision | +/- 0,1mm |
| Cut performens steel | Max 20 mm |
| Cut performens stanles | Max 10 mm |
| Cut performens alu | Max 6 mm |
| Options | none |
| Options | none |
| Options | none |
| Options | none |
| Options | none |
| Software on PC | NO but can bay extra software tru tops |
| Servo drive | Maintenance-Free 3phase servo motor |
| cutting gas | Automatic controld of gas pressure during cutting N2 and O2 |
| Palet changer | Automatic palletchanger with 2 pallets 1. in machine cutting other in load or unload posicion behind machine for max performance |
| Hight regulation | Automatic hight regulation of nossel and cutting hight |
| Conveyor | Conveyer for small part and trash |
| Cutting head | Fast exthange of cuttinghead |
| Safety equipment | Light barier – dust colektor – safty cabine on machine |

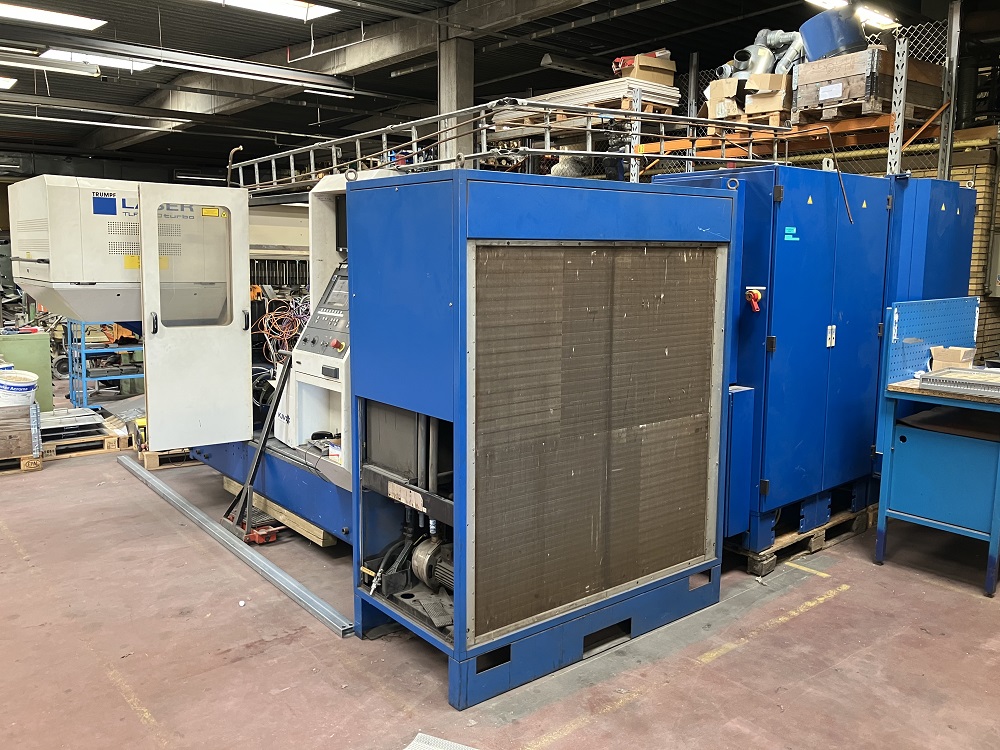

| Cooling unit laser | Cooling unit laser need destilated water and kemicals for protektion |
| NOTE | Data obtained in good faith and errors can happenwe reserve the right to modify data without notice |
